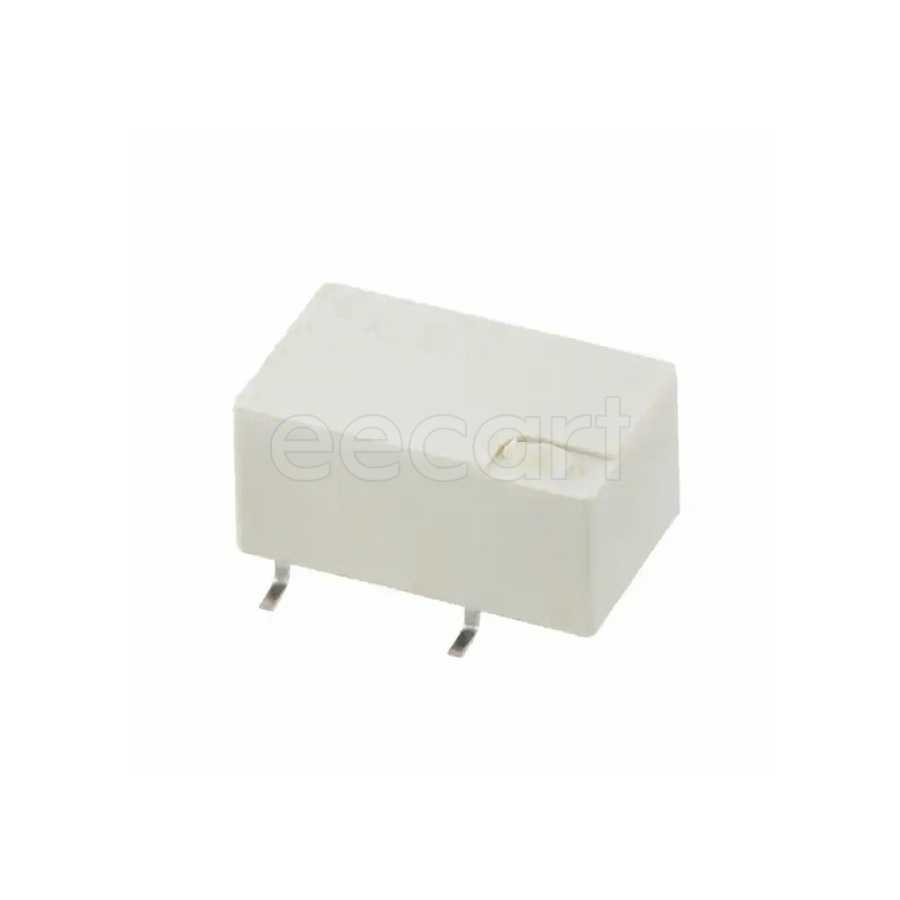

1462041-7
Manufacturer:
TE Connectivity
Mfr.Part #:
1462041-7
Datasheet:
Description:
Signal Relays SMD/SMT 28.1 mA Non-Latching Coil Voltage (DC):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 220 V |
| Length | 254 mm |
| Width | 6 mm |
| Termination | PCB |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 5.6134 mm |
| Packaging | Reel |
| Depth | 7.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 21.262142 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Max Voltage Rating (DC) | 220 V |
| Insertion Loss (dB) | 0.33 dB |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Number of Contacts | 1 |
| ELV | Compliant |
| Ambient Temperature Range High | 85 °C |
| Throw Configuration | SPST |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 28.1 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 178 Ω |
| Relay Type | Relay |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Contact Current Rating | 2 A |
| switching current | 2 A |
| power consumption | 140 mW |
| Termination Style | Gull Wing |
| Switching Voltage | 250 V, 220 V |
| Coil Power | 140 mW |
| Contact Voltage Rating (DC) | 220 V |
| Must Operate Voltage | 3.75 V |
| Must Release Voltage | 500 mV |
| Contact Form | SPST (1 Form A) |
Stock: 1777
Distributors
pcbx
pcbxUnit Price$3.88879
Ext.Price$3.88879
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.88879 | $3.88879 |
| 10 | $3.46670 | $34.66700 |
| 25 | $3.31092 | $82.77300 |
| 50 | $3.19744 | $159.87200 |
| 100 | $3.08775 | $308.77500 |
| 300 | $2.96500 | $889.50000 |
| 500 | $2.84714 | $1423.57000 |
| 1000 | $2.74928 | $2749.28000 |
